Pneumatic Power, Wireless Control — Deep Marking Without the Cable Clutter

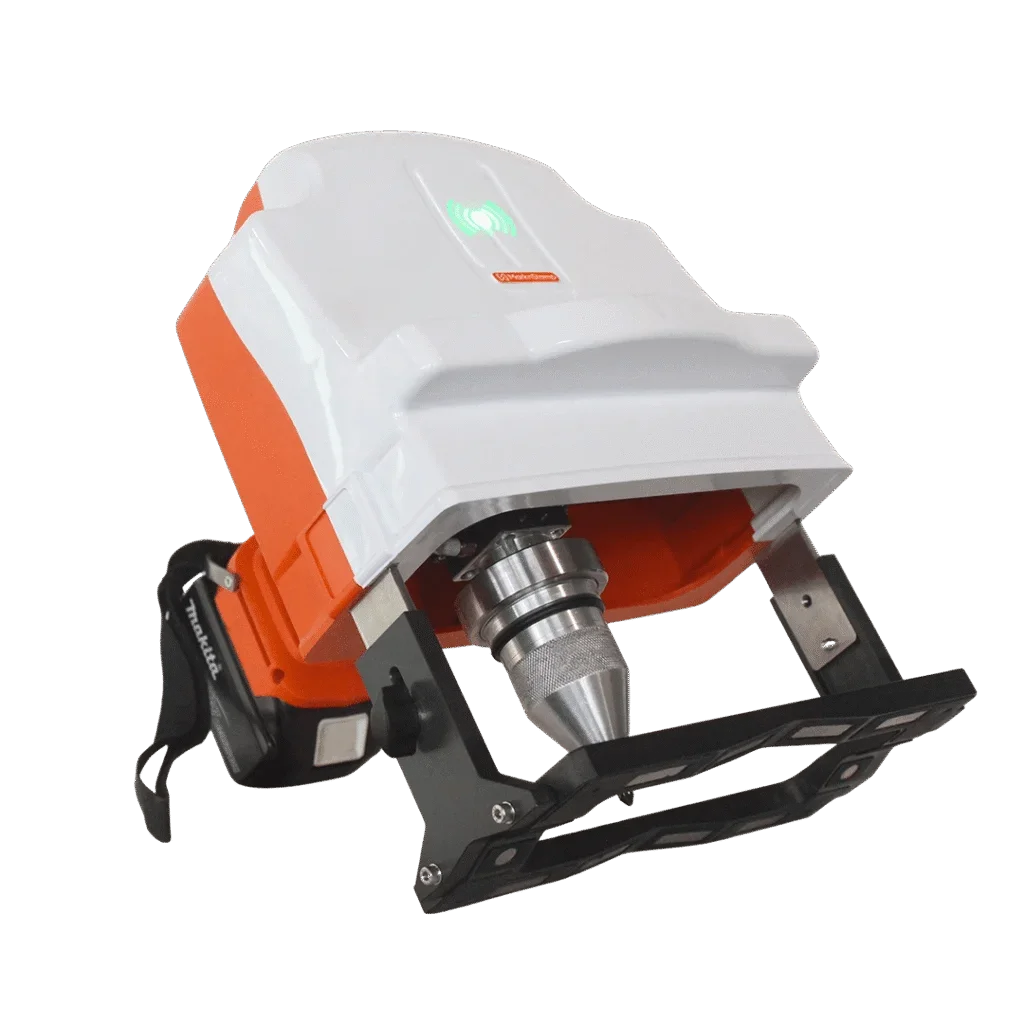

The MNSBP-145 combines the deep marking capability of pneumatic dot peen technology with the freedom of wireless, battery operated control. Connect your compressed air supply to the marking head, pair your phone, tablet or laptop via the MNSB Launcher App, and mark — no controller cable, no desk required.

For operators who need genuine pneumatic marking depth but want the freedom to move around large components without a cable running back to a controller, the MNSBP-145 is a significant step forward.

Who This Machine Is For

The MNSBP-145 suits operations that need the deep marking power of pneumatic dot peen technology with greater freedom of movement than traditional cable-connected pneumatic machines allow.

Ideal for:

Oil and gas operations requiring deep permanent marking on pipelines and heavy fittings
Mining and resources operators marking large equipment and structural components
Steel fabricators marking large components where cable-free movement is an advantage
Defence and infrastructure contractors needing deep marks with maximum operator flexibility
Any application where pneumatic marking depth is required but controller cables create a handling problem

What You Can Mark

Deep serial numbers and part numbers up to 1mm depth
Asset identification codes
Compliance and traceability marks
Date and batch codes
Barcodes and DataMatrix codes
Logos and custom graphics

What Makes It Different

Traditional pneumatic dot peen machines require both a compressed air connection and a cable running back to a separate controller unit. The MNSBP-145 eliminates the controller cable — the marking head connects to your compressed air supply as normal, but the electronics and Wi-Fi are powered by a high-performance lithium-ion battery, with full control via the MNSB Launcher App on Android, iOS or Windows.

The result is a pneumatic machine with significantly greater freedom of movement. No controller cable restricting where you can work means easier handling on large components, in confined spaces and across wide work areas.

With a 140mm x 50mm marking window and 4 to 6 hours of battery life per charge, it's built for a serious day of industrial marking.

Technical Specifications

Marking Window: 140mm x 50mm
Marking Depth: Up to 1mm (material dependent)
Battery: High-performance Li-ion
Battery Life: 4 to 6 hours
Control: MNSB Launcher App
Compatibility: Android, iOS and Windows
Air Supply: Compressed air required
Type: Pneumatic with wireless battery operated control
Warranty: 12 months

Talk to Us About Your Application

Call us on (02) 9836 0564 or email info@instrumark.com.au to discuss your deepmarking requirements or request a sample mark on your own material.
